STRONGARM

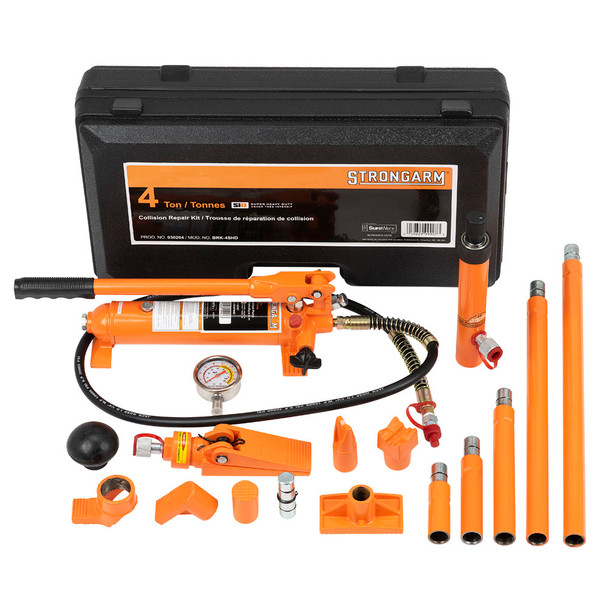

Body Repair Kit - Super Heavy Duty
- SKU:
- 030204/030208/030256
- UPC:
- 059629999073
- MPN:
- BRK-4SHD
- Condition:
- New
Frequently bought together:
Description
Body Repair Kit - Super Heavy Duty | Strongarm
- Designed for pushing spreading and bending of vehicle body panels and other collision repairs
- Auto air bleed pump eliminates the need to bleed the system prior to use
- Double-braided hydraulic hose for increased durability and resistance to cracks and abrasions
- Heavy-duty blow mould case allows for easy storage and transport for use in the shop or on the road
- Attachments are interchangeable with many other popular branded kit components
SKU 030204
| Application | Construction, Farming, Trucking |
|---|---|
| Attributes | Auto Air Bleed Pump, Double Braided Hydraulic Hose |
| Capacity (T) | 4 Ton |
| Standards | ASME/PASE 2019 |
| Closed Height (in.) | 10.5 |
| Compatible with | Other Branded Kit Components |
| Diameter - Inner Ram (in.) | 1.18 |
| Duty Level | Super Heavy Duty |
| Effective Area (in²) | 1.09 |
| Extension Tubes Length (mm/in.) | 32.28mm / 1.3", 50.39mm / 2", 85.03mm / 3.3", 165.35mm / 6.5", 194.88mm / 7.7" |
| Hose Length (ft.) | 5' |
| Includes | Heavy Duty Blow Mould Case, Pressure Gauge |
| Material Finish (Pump Core and Piston Rod) | Chrome Plated |
| Max. Operating Pressure (PSI) | 8043 PSI |
| Net Weight (lb.) | 40.79 |
| Oil Capacity (ml) | 380ml |
| Oil Output Port Thread | 3/8-18 NPT |
| Output per Stroke (in.) (Ram Cylinder Extended Length) | .157" |
| Piston Stroke (in.) | .98" |
| Pump Capacity (T) | 8043 |
| Ram Capacity (T) | 4 |
| Ram Extended Height (in.) | 15.24 |
| Rated Pressure (PSI) | 8043 |
| Shipping weight (kg.) | 18.5 kg |
| Shipping weight (lb.) | 40.79 lbs |
| Stroke (in.) | 4.72" |
| Country Of Origin | China |
Downloads
SKU 030208
| Attributes | Double Braided Hydraulic Hose, Auto Air Bleed Pump |
|---|---|
| Capacity (T) | 10 |
| Standards | ASME/PASE 2019 |
| Closed Height (in.) | 12.68 |
| Compatible with | Other Branded Kit Components |
| Diameter - Inner Ram (in.) | 1.77 |
| Duty Level | Super Heavy Duty |
| Effective Area (in²) | 2.46 |
| Extension Tubes Length (mm/in.) | 43.30mm / 1.7", 104.33mm / 4.1", 143.70mm / 5.7", 204.72mm / 8.1" |
| Includes | Heavy Duty Blow Mould Case, Pressure Gauge |
| Material Finish (Pump Core and Piston Rod) | Chrome Plated |
| Max. Operating Pressure (PSI) | 8937 |
| Net Weight (lb.) | 66.14 |
| Oil Output Port Thread | 3/8-18 NPT |
| Ram Capacity (T) | 10 |
| Ram Extended Height (in.) | 17.8 |
| Rated Pressure (PSI) | 8937 |
| Country Of Origin | China |
Downloads
SKU 030256
| Application | Construction, Farming, Trucking |
|---|---|
| Attributes | Double Braided Hydraulic Hose, Auto Air Bleed Pump |
| Capacity (T) | 20 |
| Standards | ASME/PASE 2019 |
| Closed Height (in.) | 11.1 |
| Diameter - Inner Ram (in.) | 2.56 |
| Duty Level | Super Heavy Duty |
| Effective Area (in²) | 5.14 |
| Extension Tubes Length (mm/in.) | 28.34mm / 1.1", 50mm / 2", 100.39mm / 4.0", 200mm / 7.9", 275.59mm / 10.9" |
| Includes | Pressure Gauge |
| Material Finish (Pump Core and Piston Rod) | Chrome Plated |
| Max. Operating Pressure (PSI) | 8567 |
| Net Weight (lb.) | 48.5 |
| Oil Output Port Thread | 3/8-18 NPT |
| Ram Capacity (T) | 20 |
| Ram Extended Height (in.) | 16 |
| Rated Pressure (PSI) | 8567 |
| Country Of Origin | China |
Downloads
