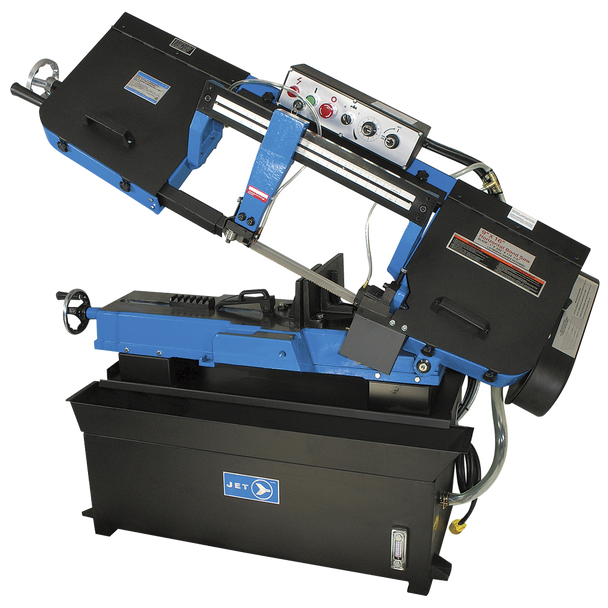

9" x 16" Horizontal Bandsaw

(No reviews yet) Write a Review
SKU:
222335
UPC:
059629814154
MPN:
222335
Minimum Purchase:
1 unit
$13,354.45
Frequently bought together:

Description

9" x 16" Horizontal Bandsaw | JET

  • Designed for industrial use, this saw features a heavy duty steel and cast iron saw frame
  • One piece cast iron saw bed
  • Enclosed base, welded for strength
  • Precision cast 13" blade wheels
  • Coolant system includes: pump and reservoir; fully adjustable delivery nozzles at front and rear blade guides; coolant pick-up port in the drive wheel housing; quick-check gauge for coolant level
  • Removable chip tray for easy cleaning
  • Totally enclosed 1-1/2 HP fan cooled motor with 24 volt controls
  • Four speed belt drive system
  • Hydraulically controlled feed rate with micro adjust switch
  • Automatic shut-off limit switch
  • Blade guide system consists of ball bearing thrust roller, ball bearing blade guides and tungsten carbide slides
  • Moveable left blade guide arm adjusts from 16" to 7" capacity
  • Quick set vise adjusts for 90° to 45° angle cuts
  • Material stop with 24" capacity
  • Each machine factory tested and set
  • Standard Equipment: variable pitch blade; blade chip brush; coolant system; tool kit; quick set vise and material stop
  • Bed Height: 25"
  • Blade Speeds: 82 SFPM, 132 SFPM, 170 SFPM, 235 SFPM
  • Capacity 45°: 6-1/2" (circle), 9" X 6-1/8" (rectangular shape)
  • Capacity 90°: 9" (circle), 1-3/8" x 16" – 9" x 12" (rectangular shape)
  • Floor Space Required: 65" x 28"
  • Motor: 1-1/2 HP, 1 ph, 230V complete with 24 V control panel
  • Throat Depth: 9"
  • Vise Swivels: 45°
  • Wheel Diameter: 13"
