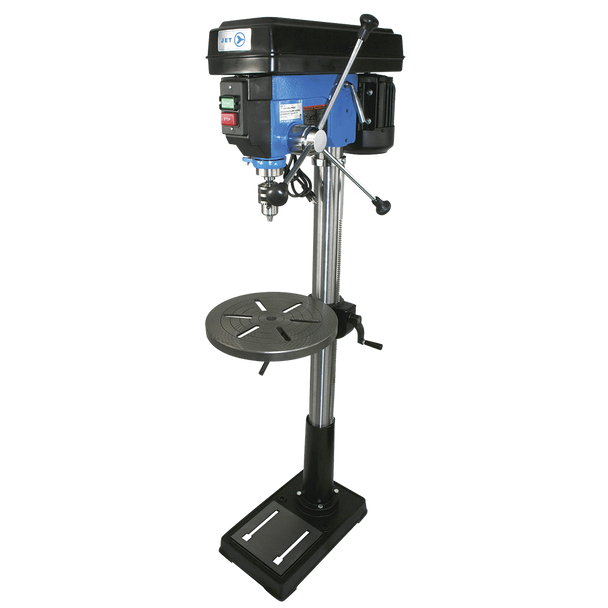

17" 1 HP 16 Speed Floor Drill Press

(No reviews yet) Write a Review
SKU:
200278
UPC:
059629815588
MPN:
200278
Width:
138.43 (cm)
Height:
53.34 (cm)
Depth:
27.17 (cm)
Minimum Purchase:
1 unit
$2,076.61
Frequently bought together:

Description

17" 1 HP 16 Speed Floor Drill Press | JET

  • Powerful 1 horsepower motor
  • Full 17" swing for easy drilling of larger work pieces
  • 16-speed capability allows for a broad assortment of drilling applications
  • Safety on/off switch with removable lock key
  • Fully hinged belt and pulley cover and quick-adjust motor mount permit fast changes of spindle speed
  • Worktable with quick release clamp rotates and tilts to 45° right and left
  • Slots in worktable and base permit easy clamping of the work piece
  • Positive depth setting mechanism uses a threaded rod and two lock nuts for accuracy
  • Built-in work lamp with separate switch (bulb not included) Standard Equipment: Drill chuck and key
  • Base Size: 12" x 19-3/4"
  • Chuck Size: 5/8"
  • Column Diameter: 3-1/8"
  • Drilling Capacity: 5/8"
  • Max. Spindle Distance to Table: 28"
  • Motor: 1HP, 1 ph, 115/230 V, 8.5/4.25 A, Pre-wired 115 V
  • Number of Spindle Speeds: 16
  • Overall Height: 64-1/2"
  • Range of Spindle Speeds: 220 – 3,380 RPM
  • Spindle Distance to Base: 48-3/8"
  • Spindle Taper: MT2
  • Spindle Travel: 3-1/4"
  • Swing: 17"
  • Table Diameter: 13-3/4"
  • Table Tilt (Right and Left): 0 – 45°
  • Type: Floor Model
    • View AllClose
