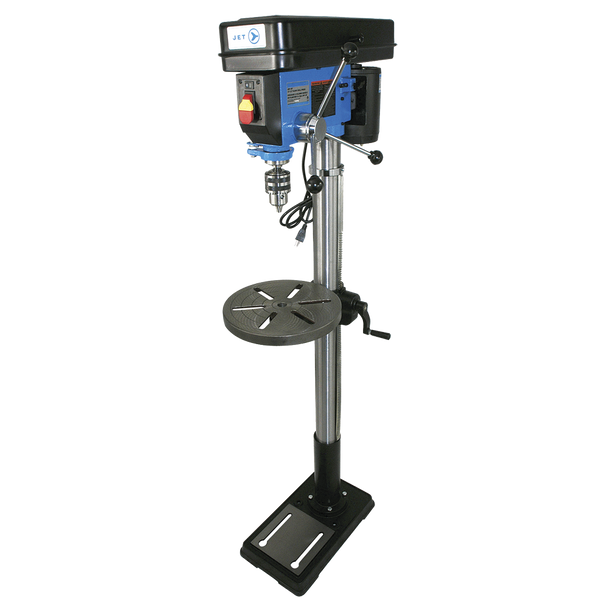

13-1/2" 3/4 HP 12 Speed Floor Drill Press

(No reviews yet) Write a Review
SKU:
200275
UPC:
059629815571
MPN:
200275
Width:
137.16 (cm)
Height:
47.62 (cm)
Depth:
22.86 (cm)
Minimum Purchase:
1 unit
$1,325.81
Frequently bought together:

Description

13-1/2" 3/4 HP 12 Speed Floor Drill Press | JET

  • Powerful 3/4 horse power motor
  • 12 speed capability allows for a broad assortment of drilling applications
  • Safety on/off switch with removable lock-out key
  • Fully hinged belt and pulley cover and fully adjustable motor mount permit fast changes of spindle speed
  • Worktable with quick release clamp rotates and tilts to 45° right and left
  • Slots in worktable and base permit easy clamping of the work piece
  • Positive depth setting mechanism uses a threaded rod and two lock nuts for accuracy
  • Built-in work lamp with separate switch (bulb not included) Standard Equipment: Drill chuck and key
  • Base Size: 10" x 16-1/2"
  • Chuck Size: 5/8"
  • Column Diameter: 2-7/8"
  • Drilling Capacity: 5/8"
  • Max. Spindle Distance to Table: 31-1/2"
  • Motor: 3/4 HP, 1 ph, 115/230 V, 5.2/2.6 A, Pre-wired 115 V
  • Number of Spindle Speeds: 12
  • Overall Height: 61-5/8"
  • Range of Spindle Speeds: 280 – 3,000 RPM
  • Spindle Distance to Base: 48-3/4"
  • Spindle Taper: MT2
  • Spindle Travel: 3-1/8"
  • Swing: 13-1/4"
  • Table Diameter: 11-3/8"
  • Table Tilt (Right and Left): 0 – 45°
  • Type: Floor Model
